China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Product Categories

LED 2G11 Lamp [11]
LED Controller [18]
LED Down light [15]
LED filament bulb [6]
LED Flexible Strip [32]
LED Flood Lights [27]
LED Globe Bulb [15]
LED High Bay Lights [17]
LED Panel Lights [26]
LED Spotlight [23]
LED Tube [24]
Outdoor LED Flood light [16]

Guangzhou Gidealed Lighting Co,.Ltd

Contact Now

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Place of Origin : china

Brand Name : gidealed

Certification : CE ,ROSH, TUV,UL,FCC

Model Number : GD-PL6060-36W

Input power : 36W

Input voltage : AC90-265V

Lumious Flux : 2500-2700lm

Lumious Efficacy : 90lm/w

Led source : Epistar SMD2835 LEd

Led color : cool white,warm white,pure white

Housing : Aluminum

Housing color : Silver

Packaging : colo box

MOQ : 1-30 pcs

Price : US$5-200/pcs

Packaging Details : 30 pcs/box

Delivery Time : within 14 Days

Payment Terms : T/T, L/C, West Union

Supply Ability : 5000pcs per week

Contact Now

36W LED Panel Lights 600*600mm

Features:

♥ Imported LGP , the light guide light rate is 80% above
♥ Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
♥ The light even effect and no dark area, efficacy > 75 LM/W
♥ Up to 70% energy savings
♥ Isolation constant current power supply, input voltage: AC85-265V,
♥ High efficiency constant current driver can reach more than 90%,PF>0.92
♥ Unique design, Embedded installation without the accessories.
♥ Special circuit design, each group of LEDs work separately, avoiding any problem of lighting
output caused or influenced by single faulty LED.

Specifications:

	model:	GD-PL6060-36W
	Input Power:	36 w
	Input Volt:	AC90-265V
	PF	>0.95
	Luminous Flux:	2500-2700 lm

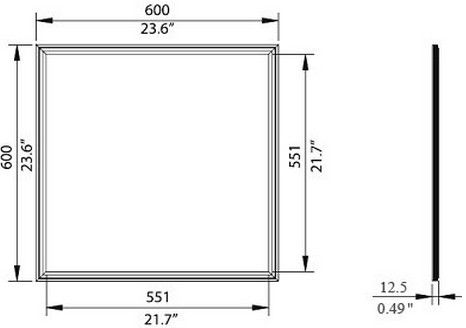

	Dimension:	595mm595mm12mm
	LED type:	Epistar SMD2835 LED
	Housing	aluminum
	Housing Color:	Silver
	Net Weight:	5.6 kg
	LED Color:Warm white, Pure white, Cool white

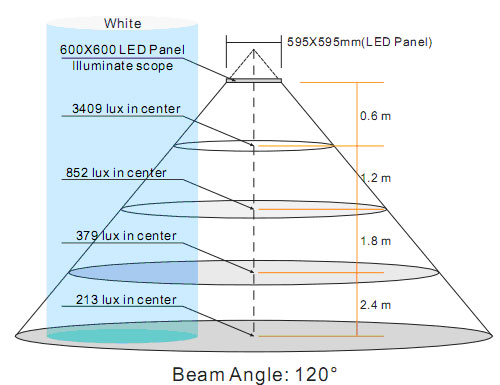

Curve of light distribution & Lux distance(Ta=25℃±3℃)

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Power connection:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Installation Instruction:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Package:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Applications:

Widely used in the hotesl, meeting rooms, offices, hospitals, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel Images
